Changzhou Suring motor technology co.,ltd is engaged in ebike motor kits/Ebikes and other mobility motor solutions. We have rich experience technology and sales team who can give you the best service
7 Years
| Ask Lasest Price | |
| Brand Name : | Suringmax |
| Model Number : | SRFAT3000W |
| Certification : | CE |
| Price : | $120 PER PIECE |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 10000 sets per month |
| Delivery Time : | 30days |
| Motor | 72v3000w gearless fatbike motor |
| Net weight | 9kg |
| Gross weight with package | 10kg |
| package size for single motor | 40*40*30cm |
| Winding turns | 3T,4T,5T,6T,7T |
| Suitable wheelsize | 20-29inch for bike rim |
| Dropout | 135mm for front,170-190mm |
| Max torque | 50Nm |
| Max speed | 50km/h |
| Stator | Aluminum Structure stator |

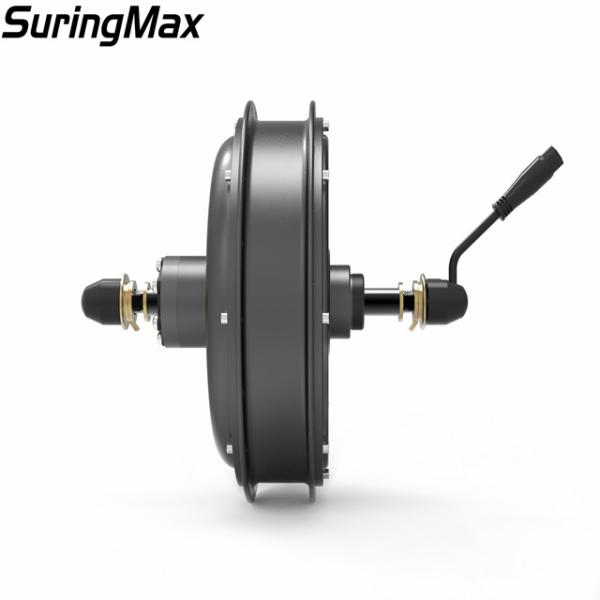

Pictures of this fat bike motor:
Winding inside:
45mm magnets with aluminum structure and 0.35mm silicon steel sheet:
More powerful and efficiency than steel structure and 0.5mm silicon steel sheet
Diagram of dropout 190mm fatbike motor
Quick information for 72v 3000w fat bike motor kit
Suitable Rim:
Ebike rim95mm width,20-29inch
Suitable controller:
72V 60A controller
Suitable battery
Also have other shape for choice, and OEM size available
Suitable display:
PAS:
Throttle:
Ebrake/Brake sensor:
Packing&delivery:
We use the 5-layer corrugated carton and good quality foam to pack one kit in one carton.
Samples will be shipped by the fastest express way
The batch order will shipped by sea.
Motor without rim assembled packed 2 in 1 carton with quality foam protected:

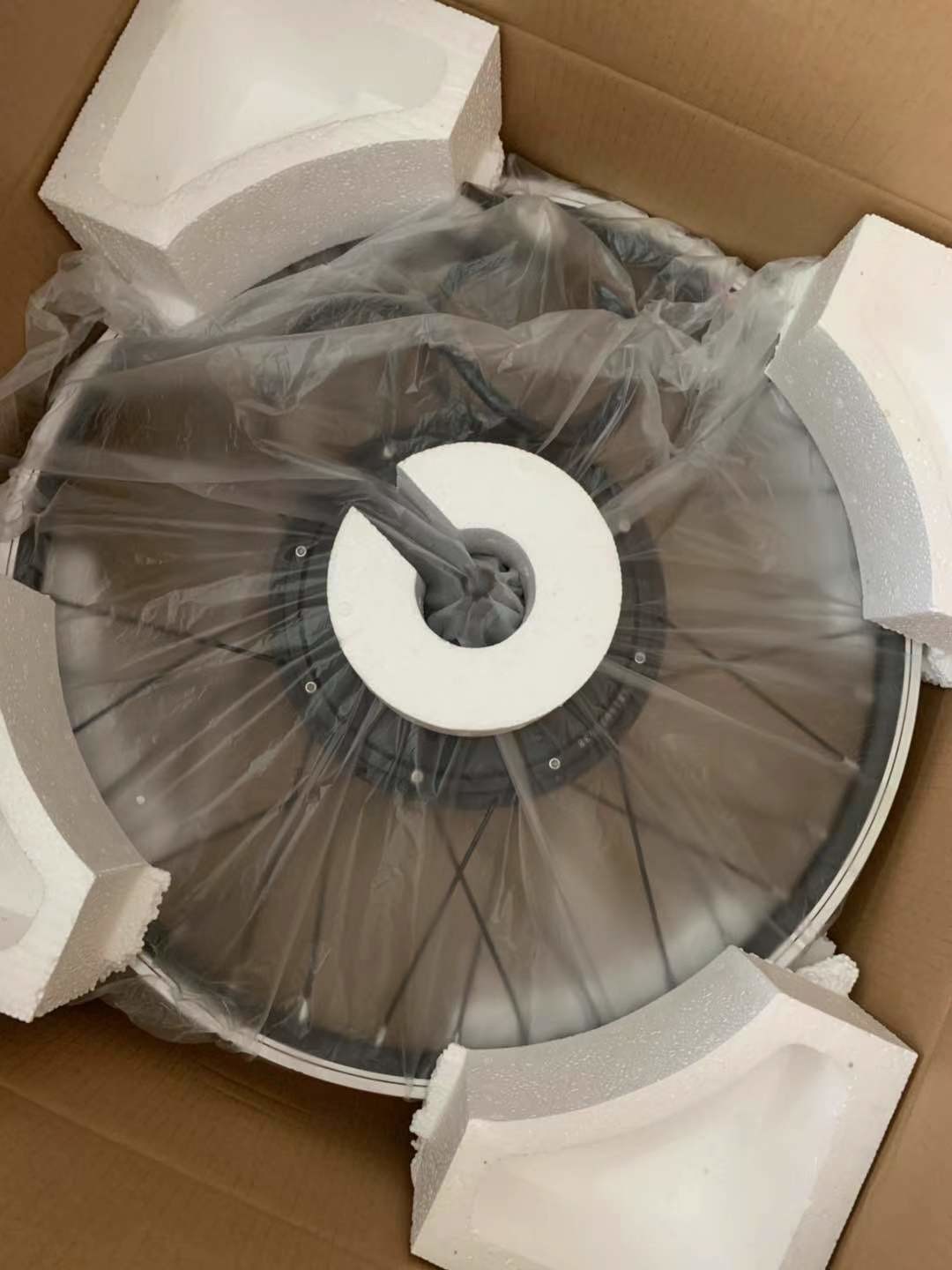

Motor with rim assembled pack 1 in 1 carton with good protection to make make no defect.
|
