Changzhou Suring motor technology co.,ltd is engaged in ebike motor kits/Ebikes and other mobility motor solutions. We have rich experience technology and sales team who can give you the best service
7 Years
| Ask Lasest Price | |
| Brand Name : | Suringmax |
| Model Number : | SRFAT500w |
| Certification : | ce |
| Price : | USD300 PER SET |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 10000 sets per month |
| Delivery Time : | 30days |

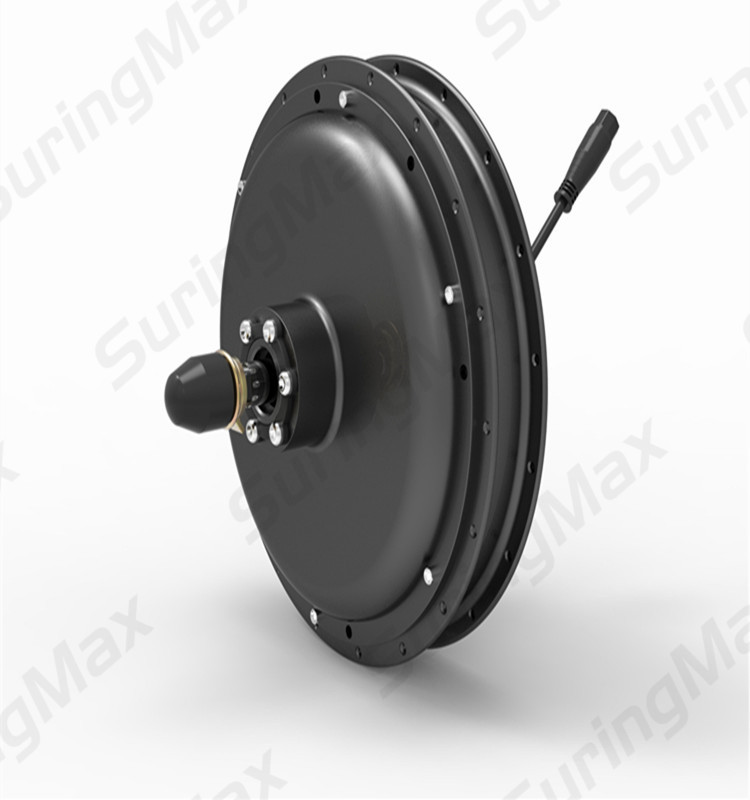

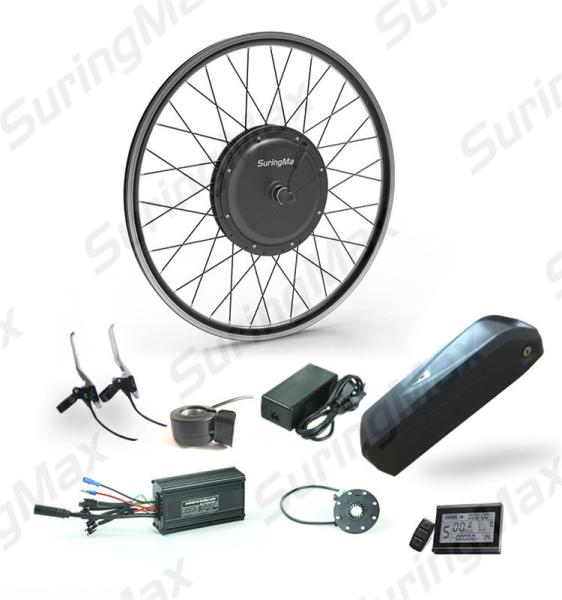

SuringMax 500W 50km/h fat bike motor kit
Specification:
| 48v 500W Gearless Fatbike Motor | |
 | |
1.Magnet: 45mm 3. MAX speed=50KM/H 5. Dropsize: 170mm 7. Double hall sensor 9.Max Torque:50N.M. | 2.Dropout:170mm/190mm 4.Weight:7.5kg 6.Brake lever:V/Disk brake 8.Rim support: 20-29''(700c) 10.Temperature sensor for option |
| Controller | 48V14A brushless controller |
| Battery | 48V11.6AH LG cell lithium battery |
| Display | LED/LCD Display for option |
| Throttle | Wuxing Thumb / Twist throttle for Optional |
| Braking | E-brake or brake sensor for Optional |
| PAS | 8 / 10 / 12 magnets pedal assistant system |
Reference diagram
Controller
We have waterproof controller and standard controller for option
Display
Other products
How to determine what you want
What's size of the wheel? -----------------------You can choose 20inch / 24inch / 26inch / 28inch / 700C
How fast do you need? -------------------------- You can choose 30km/h---50km/h ( with load )
What type of Motor cable do you need? ------------------------Normal is DJ2.8. 1If you other type, please tell us.
What type of display?------------You can choose LCD8/ LCD5 / LCD3/LCD6/LED 900S
What type of Throttle ?---------------------Wuxing Thumb throttle or twist throttle
What type of PAS? -------------------- Normal is 8 magnets, if you need other type, please let me know.
What type of Ebrake?------------------Normal is wuxing ebrake 106pdd
Any other ideas, We are very willing to support if Possible. Because we are Factory!
|
|
