Changzhou Suring motor technology co.,ltd is engaged in ebike motor kits/Ebikes and other mobility motor solutions. We have rich experience technology and sales team who can give you the best service
7 Years
| Ask Lasest Price | |
| Brand Name : | SURING-MAX |
| Model Number : | SR500DR |
| Certification : | CE EN15194 |
| Price : | USD50-300/SET |
| Payment Terms : | L/C, T/T, D/A, D/P, Western Union, MoneyGram,PAYPAL |
| Supply Ability : | 10000SETS PER MONETH |
| Delivery Time : | 7-30 DAYS |
Motor specification:

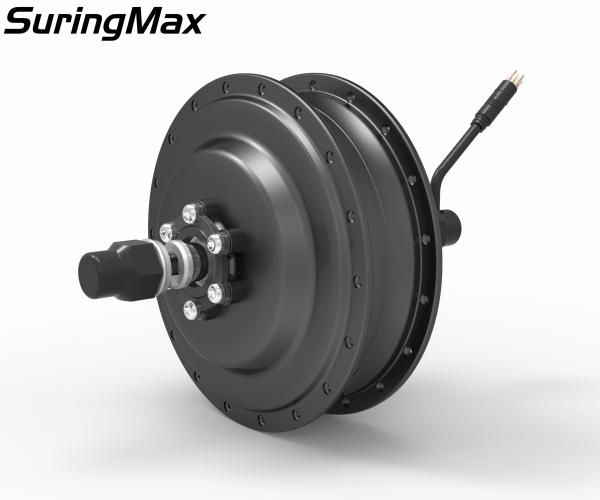

This is the rear hub motor for ebike, can assemble on to all regular
bicycle to change any bicycle to ebike .
You will get speed, power when ride it, which will save your time and help you riding Farer.
The advantage:
1.Light weight
2.Fast speed
3.Easy to assemble
4.Fashion style
5.Environmental
6.Comfortable
| Rated voltage/power | 48V500W |
| Rated speed | 25-40km/h |
| Max speed | 45km/h |
| Dropout | 135mm |
| Assemble Postion | Rear wheel |
| Brake available | V brake /disk brake |
| Suitable controller | 48V 22A |
| Suitable rim | 16-29inch ,19mm |
| Max torque | 65Nm |
| Available voltage | 24-48V |
| Packing size | 4 motors in one carton:42*42*24 |
Drawing of the motor
Necessary spare parts into the Ebike kit to make it go:
| 1.Motor in wheel:16-29 inch rim, double/single wall rim, steel spokes or stainless steel spokes for choice |
| 2.Controller:48V22A for 500w motor |
3.Lithium battery: Many shape for choice, rack type or frame type, LG, panasonic, Samsung cells amd so on:
|
| 4.Charger: 48V2A smart charger |
5.Display: Economic and Classic for choice:
LED900S LCD5 LCD3 LCD8 |
6.Ebrake: Standard ebrake and easy assemble brake sensor(attach on the original brake of the bike ) for choice:
|
7.PAS: 3 kind for choice,single hall and double hall
|
8.Thumble throttle: Twist throttle available too,thumb throttle is safer.
|
FAQ:
1.Can we place a small order before the batch order?
--Yes .
2.Do you have stocks for a quick order?
--We only have some for the spare parts like throttle and brakes
Cause the controller and Motor belongs to the OEM products,
different customers have the different request.
3.What is the estimate prepare time?
Motors: 3-15 days .
Battery /Controllers: 25-35 days.
Other spare parts: 10-20 days.
4.Do you provide any OEM?
Yes, we can design motor for some special request.
5.What is the guarantee?
3 years for motor.2 years for battery, 1 year for the other spare
parts
We will send the new one for replace together with the every next
order, you dont need to send the broke goods back.
|
|
