Changzhou Suring motor technology co.,ltd is engaged in ebike motor kits/Ebikes and other mobility motor solutions. We have rich experience technology and sales team who can give you the best service
7 Years
| Ask Lasest Price | |
| Brand Name : | Suringmax |
| Model Number : | SR250DF/DR |
| Certification : | CE |
| Price : | $230 per set |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 10000 sets per month |
| Delivery Time : | 30days |
Product Description:
This kit is make up of the following items:
| Motor | 36V 250W gear DC brushless hub motor |
| Rim and Spokes | 36H,12g/13g stainless steel/steel spokes |
| Controller | 36V14 quare wave controller and Sine wave controller for choose |
| PAS | 5/8/12 magnets PAS |
| Ebrake | Wuxing high quality electric brake/Brake sensor |
| Throttle | Thumb/ Twist throttle |
| Display | LCD3/5/6 display, Colorful LCD8 display, LED 900S display |
| Battery | Chinese/LG /Panasonic cell battery |
| Charger | 42V2A charger |
| Wiring | Waterproof cable |
Working life | 2-3years | Voltage | 36V |
| Color | black/silver | Application | 16-29inch city bikes/mounting bike/Tricycle |
| Speed | 20-40Km/h | Certification | CE |
| Power | 250w | Warranty | 3 years |
| Efficiency | ≥80% | Weight | 2.8Kg |
| Price | 1 PCS USD 58.00 | Max Torque | 36Nm |
| MOQ | 1 Piece | Model Number | SR250DF/DR |
Port | Ningbo/Shanghai | Dropout | 100 mm for front, 135 mm for rear |
The drawing of the motor:
Front motor(100mm dropout,easy to assemble)
Rear motor(135mm dropout, better for hilling)
Controller:
We have both high quality water-proof connetor controller and the normal economic type.

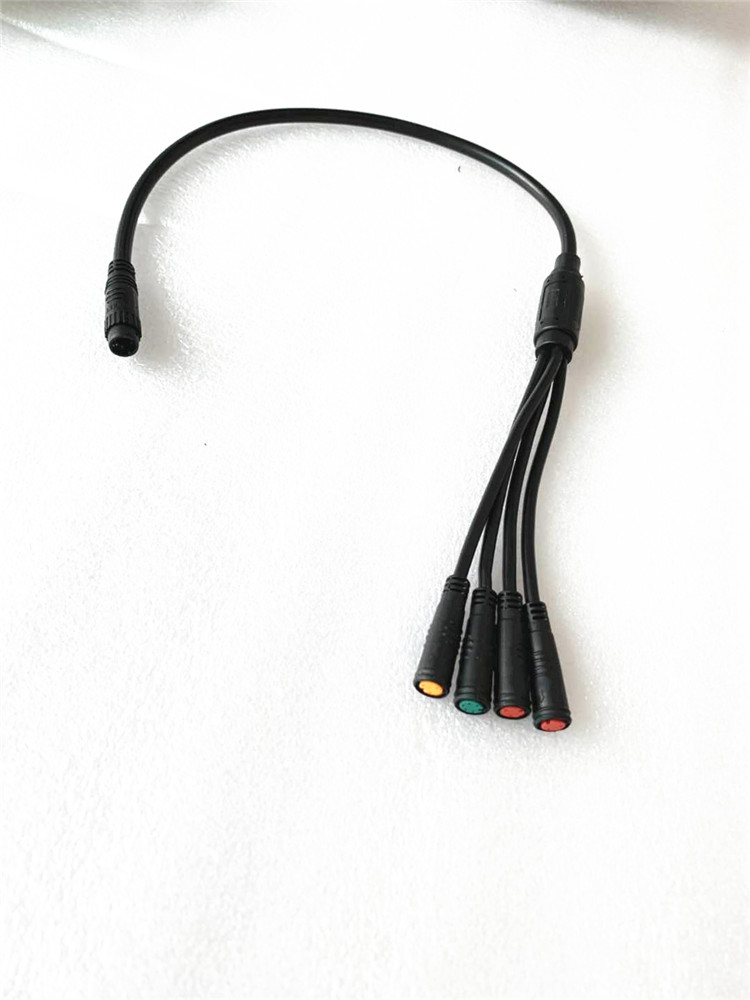

The waterproof connection one should work with the harness cables to connect to the ebrakes,
throttle, display and PAS.
The parts can connect directly to the normal connection controllers:
Battery
1) We have Tube battery,Husha battery, Hailong battery and GM Rack
battery for option
2)Our lithium battery capacity is from 8.8AH to 19.2AH
3) We have Chinese cell, Samsung cell, Panasonic cell and LG cell
for option
4) The battery capacity suitable for this motor is :36v8.8AH -11.6AH, the bigger the more range.
1) Single trip time(TM)+total trip time(TTM) Real time km/h or MPH
display
2) Single Max speed(MXS)+single Average Speed(AVS)
3) Single trip distance(DST)+Total Trip distance(ODO)
4) 6km/h push funtion,Cruise function.head ligth,back lights,
switching opitonal,brake status showing
5) torque sensor imulation speed sensor 0-5 level+ battery capcity
showing
6) 24V,36V,48V compatiable.
7) Data clear+parameter copy+Fault code Display.
PAS:
Can drive the motor when you pedal, same function to throttle.
1)We have 5/8 magnent PAS, 12 magnent PAS for option
1) We have thumb throttle and twist throttle for option.
1)We have high quality e brake and ebrake sensor for option
The application of the brake sensor:
it can work with the hydrulic brake, and the brake with shift.
Service:
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two
days, until you get the products. When you got the
goods, test them, and give us a feedback.If you have any questions
please contact with us, we will offer
the solution for you.
